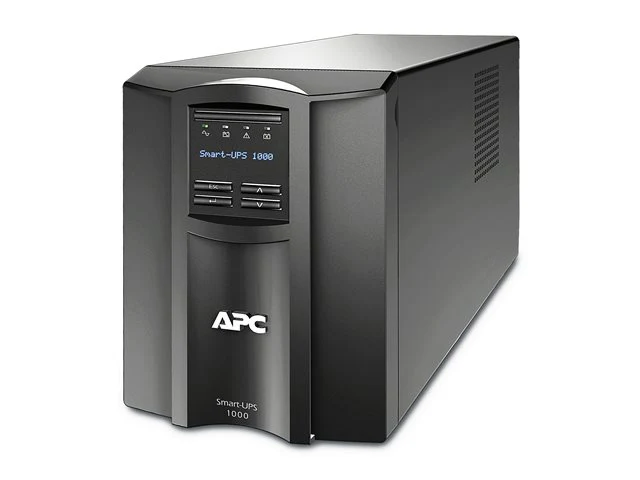

TieDex UK APC Smart-UPS SMT1000IC - UPS - 700 Watt - 1000 VA - with APC SmartConnect

APC Smart-UPS SMT1000IC - UPS - AC 220/230/240 V - 700 Watt - 1000 VA - RS-232, USB - output connectors: 8 - black - with APC SmartConnect

Basic Specifications

Manufacturer's Part Number

SMT1000IC

EAN

5059902032454

Manufacturer Warranty

3-year warranty

Product Description

APC Smart-UPS SMT1000IC - UPS - 700 Watt - 1000 VA - with APC SmartConnect

Model

APC Smart-UPS SMT1000IC

Colour

Black

Weight

18.86 kg

Input Connectors

1 x power IEC 60320 C14

Device Type

UPS - external

Product Type

UPS

Networking

RS-232, USB

Battery

Lead Acid

Dimensions (WxDxH)

17.1 cm x 43.9 cm x 21.9 cm

Bundled with

APC SmartConnect

Power Capacity

700 Watt / 1000 VA

Output Voltage

AC 230 V ± 5%

Output connectors

8 x power IEC 60320 C13 ¦ 2 x IEC jumper

Run Time (Up To)

5.8 min at full load

Input Voltage

AC 220/230/240 V

Batteries Qty

1

General

Device Type

UPS - external

Colour

Black

Bundled with

APC SmartConnect

Networking

Remote Management Interface

RS-232, USB

Expansion / Connectivity

Interfaces

1 x management (RS-232) ¦ 1 x USB ¦ 1 x EPO (emergency power off)

Expansion Slots

1 (total) / 1 (free) x SmartSlot

Dimensions & Weight (Shipping)

Shipping Width

32.8 cm

Shipping Depth

59.5 cm

Shipping Height

37.6 cm

Shipping Weight

22.77 kg

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

40 °C

Humidity Range Operating

0 - 95%

Sound Emission

41 dBA

Dimensions & Weight

Width

17.1 cm

Depth

43.9 cm

Height

21.9 cm

Weight

18.86 kg

Miscellaneous

Cables Included

Network cable - external ¦ USB cable - external

Features

Cold-start function, energy metre, LCD display, automatic self-test, Automatic Voltage Regulation (AVR), hot-swappable batteries, predicitive failure notification, audible alarm, emergency power off

Compliant Standards

CSA, EAC, IEC 62040-1, EN 62040-1, IEC 62040-2, EN 62040-2, RCM, UL 1778, VDE

Software / System Requirements

Software Included

APC PowerChute Business Edition

Battery

Quantity

1

Technology

Lead Acid

Run Time (Up To)

5.8 min at full load ¦ 19.1 min at half load ¦ 183 min at 50 Watts ¦ 100 min at 100 Watts ¦ 45.2 min at 200 Watts ¦ 24.7 min at 300 Watts ¦ 15 min at 400 Watts ¦ 9.8 min at 500 Watts ¦ 7.1 min at 600 Watts ¦ 5.8 min at 700 Watts

Recharge Time

3 hours

Transfer Time

6 ms

Features

Leak-proof, maintenance free, sealed

Manufacturer Warranty

Service & Support

Limited warranty - replace or repair - 3 years ¦ Limited warranty - batteries - 2 years

Power Device

UPS Technology

Line interactive

Input Voltage

AC 220/230/240 V

Input Voltage Range

AC 160 - 286 V

Input Voltage Range (Adjustable)

AC 151 - 302 V

Frequency Provided

50/60 Hz ± 3Hz

Frequency Required

50/60 Hz ± 3Hz

Input Connectors

1 x power IEC 60320 C14

Power Output Connectors Details

8 x power IEC 60320 C13 ¦ 2 x IEC jumper

Output Voltage

AC 230 V ± 5% - 50/60 Hz

Power Capacity

700 Watt / 1000 VA

Output Waveform

Sinewave

Surge Suppression

Yes

Surge Energy Rating

459 Joules

Circuit Protection

Circuit breaker
