The Story
- Laser Projection Vertical & Horizontal
- Working range 30m with 50m detector
- Robust over-moulded construction
- 3 mode Pendulum system: self-leveling, manual, and pendulum lock
- Accurate to Ā± 0.3mm/m
- 1m Impact Resistance
- 360Ā° rotation
- IP54 Rating
- Integrated magnetic bracket for easy attachment

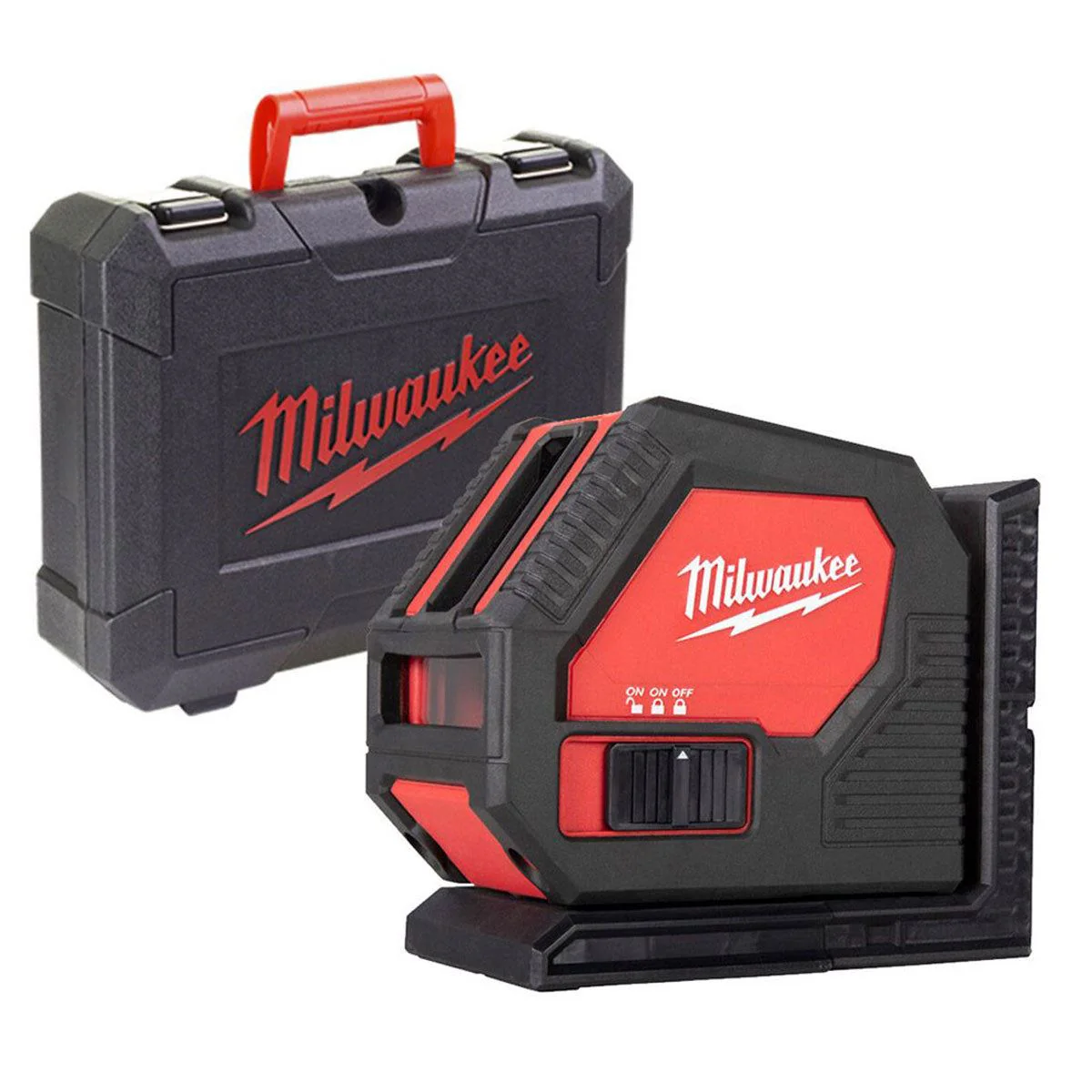

Milwaukee CLL-C Green Cross Line Laser With Case 4933478753
Milwaukee CLL-C is a compact and versatile cross line laser that provides all-in-one functionality with horizontal leveling and vertical alignment. It has high intensity green beams that provide a working range of 30 m and up to 50 m with a detector. The laser is powered by four AA batteries and has a runtime of up to 8 hours. It also has a 3-mode pendulum system: Manual Mode for use at any angle, Self-Levelling Mode that indicates out-of-level condition with a 4Ā° self-leveling range and Pendulum Lock Mode to protect components during transport.
Features:
High intensity green beams provide a working range of 30m and up to 50m with a detector
Alkaline cross line laser provides an all-in-one functionality with horizontal levelling and vertical alignment
Integrated magnetic bracket with rear mounted amplified rare earth magnets, 1/4ā³ tripod thread and hang hole allow attachment to steel stud, wooden stud and tripod
The bracket provides the laser 360Ā° rotation
Robust over-moulded construction with an IP54 rating, the laser is water/ debris resistant and can withstand up to 1 m drops
The 4x AA alkaline batteries provides all day run time of over 8 hours
3 mode pendulum system: Manual Mode for use at any angle, Self-Levelling Mode that indicates out-of-level condition with a 4Ā° self-levelling range and Pendulum Lock Mode to protect components during transport
Comes With:
4 x AA Batteries
1 x Track Clip
1 x Kitbox Carry Case
Product Specification:
Brand: Milwaukee
Part No: 4933478753
Barcode: 4058546360351
Accuracy: 0.3 mm/m
Colour Of Laser Line: Green
Colour Of Plumb Points: Green
Compatible Laser Detector: LLD50 / LRD100 (not included)
Laser Classification: Class 2
Laser Projection: 1 x horizontal, 1 x vertical
IP Protection Class: IP 54
Self Leveling Range: 4.0Ā°
Self Leveling Time: 3 S
Standard Equipment: Track clip
Working Range Detector: 50M
Working Range Visible: 30M
Battery Type: Alkaline
Drop resistance: 1 m
Battery compatibility : 4x AA
Max. run time : 8 hours
Weight With Battery Pack (EPTA): 0.7 KG
Source : Tiedex.co.uk ā please refer to description and specification for full details of product**
