The Story
- 36V Brushless motor
- 165mm Diameter blade
- Auto-Start Wireless System - Bluetooth power take-off
- Electronic speed control
- Automatic Torque Drive Technology

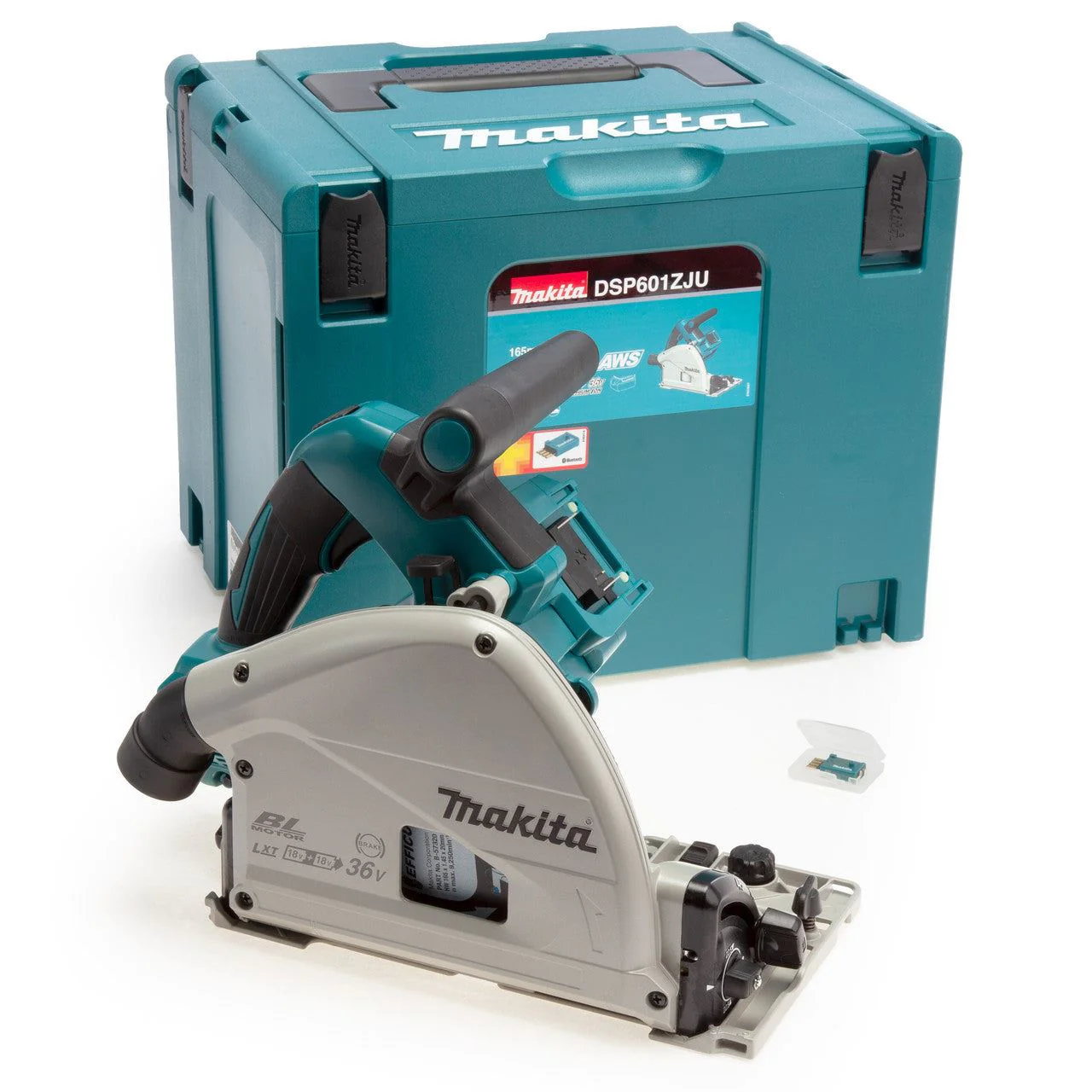

Makita DSP601ZJU 36V 165mm Brushless AWS Plunge Cut Saw With Case
Features:
Auto-Start Wireless System (AWS) - connects to compatible dust extractors with Bluetooth. The dust extractor automatically runs while the switch is on.
Electric brake
Variable speed control dial.
Soft start
Automatic Torque Drive Technology: Automatically changes the cutting speed according to load condition for optimum operation
Brushless motor
Depth stopper for splinter free cutting
Bevels -1 to 48 degrees
Positive stop for bevel adjustment
Powered by two 18V Li-ion batteries in series to supply energy to the powerful 36V DC motor drive system.
Compatible with Guide Rail
Comes With:
1 x Hex Wrench 5 Mm ( 783203-8 )
1 x Wireless Adapter ( 198897-0 )
1 x Makpac case (4) ( 821552-6 )
Product Specification:
Part No: DSP601ZJU
Barcode: 0088381851718
Nominal Battery Voltage: 2 x 18 V
Voltage LXT: Yes
Max. Cutting Depth at 90°: 56 mm
Max. Cutting Depth at 45°: 40 mm
Max. Bevel Range (Left): - 1 / 48 º
No load speed: 2500 - 6300 min⁻¹
Sound Power Level (LWA): 103 dB(A)
Sound Pressure Level (LpA): 92 dB(A)
Noise Uncertainty (K Factor): 3 dB(A)
Product Dimensions (L x W x H): 346 x 241 x 272 mm
Brushless Motor: Yes
Max. Cutting Depth at 48°: 38 mm
AWS ready: Yes
Battery Chemistry (Ni-Cd / Ni-MH / Li-ion): Li-ion
Blade Diameter: 165 mm
Bore Size (Arbor Diameter): 20 mm
Vibration Level, Cutting Wood: ≤ 2,5 m/s²
Vibration Uncertainty (K Factor), Cutting Wood: 1,5 m/s²
Vibration Level, Cutting metal: ≤ 2,5 m/s²
Vibration Uncertainty (K Factor), Cutting metal: 1,5 m/s²
Vacuum cleaner connection Ø in / out: 35/43 mm
Source : Tiedex.co.uk – please refer to description and specification for full details of product**
